'4th Gen' Automated Preform Dimensional Measurement System

Purpose Built
Designed for high-volume preform makers with frequent tool changes.

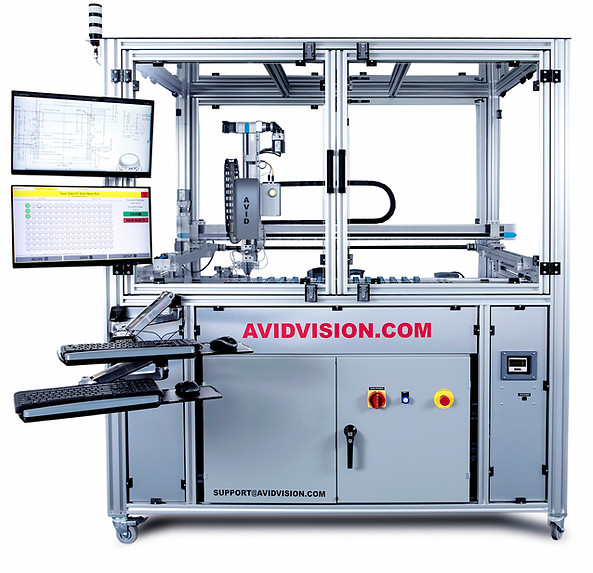

For 2023, AVID is pleased to introduce the AVBIS-4P: a modular measurement package for preforms that incorporates the capabilities and simplicity of the AVBIS-M system into an automated preform measurement platform. The AVBIS-4P replaces the AVBIS3000P in the AVID product line; the system retains its predecessor’s flexibility and precision, while reducing cycle time via the integration of a cartesian work envelope and introducing capability such as a cavity number reading (OCR) and preform thickness.


The high-speed cartesian robot feeder selects preforms from the 144-cavity tray then returns the preform after tests are completed. When configured with multiple testing modules, the AVBIS-4P is able to perform simultaneous testing, a significant improvement on the previous generation system.


AVBIS-4P is designed for use by untrained users; preforms are loaded into the tray. The user selects the preform program from the part library, and indicates the number of preforms to be run. The operator can isolate any blocked-off or unused cavity in the mold that should not be tested. On screen pass/fail indicators allow operators to review data in real-time while preforms are measured.

Because of its speed and precision, the AVBIS-4P is ideal for manufacturers who seek to reduce downtime during line start-ups and new mold qualifications. Additionally, the consistent measurement technique of the AVBIS-4P allows customers to monitor, adjust and control production processes when data is sent to SPC software.

Dimensions Measured

All SPI-ISBT-GPI standard bottle/preform dimensions, including (but not limited to):

  • Overall height

  • S

  • T (thread diameter)

  • TMax (multiple thread max diameter)

  • TDelta (“thread flash”)

  • TPD (thread pitch distance)

  • E (thread sidewall diameter)

  • HrefT (closure clearance height, referencing thread)

  • HrefTMax (closure clearance height, referencing maximum thread)

  • HrefZ (closure clearance height, Husky method)

  • HrefA (closure clearance height, referencing tamper bead)

  • HrefF (closure clearance height, referencing custom diameter)

  • K (a.k.a. S1)

  • SU (a.k.a. S1 wall-thread intersect)

  • A (tamper bead diameter)

  • D (tamper bead height)

  • Z (neck support ring diameter)

  • X (neck support ring height)

  • F (upper ring diameter)

  • L (bead height)

  • W (bead thickness)

  • B (tamper recess diameter)

  • Total flash

  • XHeight (bottle height to NSR)

  • Intersect Height (UI/LI)

  • Intersect Diameter (UI/LI Width)

  • Body/panel diameter

  • Neck Straight

  • Weight (w/ scale option)

  • Lean (centerline)

  • Lean (L’Oreal method)

  • Finish inner diameter / ID (w/ bore gauge option)

  • Sealing Surface Radius (w/ hi-mag option)

  • Tamper Bead Radius (w/ hi-mag option)

  • Thread Radius (w/ hi-mag option)

  • D-Angle (w/ hi-mag option)

  • Preform Length

  • Preform Gate Height

  • Preform Thickness (w/ UTES-P option)

  • Cavity number (w/ OCR option)

Accommodates a wide range of preform sizes.
Simple to Use
'Load & go.' Autonomous handling for 144+ preforms.
Full mold round qualifications results in hours, not days.
Including OCR and thickness.
Easy Changeover
Simple part changes. Preform changeover time <2 minutes.
